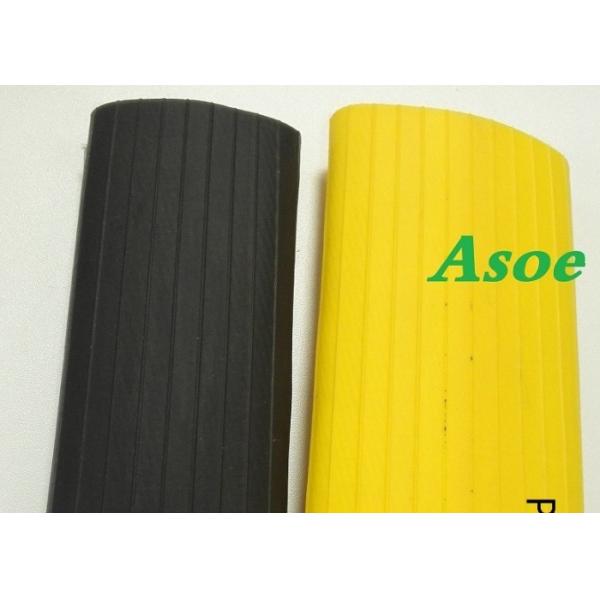

Wovenflex Extra is one type of “through-the-weave” heavy duty PVC/NBR layflat hose. This hose features a unique one-piece working pressure from a synthetic woven polyester through-the-weave construction and attains its higher reinforcement than Spiral plies; its excellent durability is derived from a high-tensile PVC/NBR rubber compound, which completely encases the abrasion resistance. jacket. The ribs on the cover surface greatly increase abrasion resistance.

Inner tube and cover:PVC/NBR compound both tube and cover are co-extruded to obtain maximum bending.The ribs on the cover surface greatly increase abrasion resistance and help to provide a long service life.

Reinforcement:Circular woven polyester jacket

Operating Temperature Range:From-36°Fto178°F (-37°C to 81°C)

Standard Color:Yellow or black,other colors available per request

Standard Length:50ft,100ft,300ft/91.5m, 330ft/100m; other lengths available per request;

Others

Ribbed cover for flexibility and abrasion resistant.
Color: Black, Yellow or Red
Temperature range:--40° to 150°F (-40° to 65°C)
Elongation at WP:<1.5%
Expansion at WP:<5%

Wovenflex Extra, PVC/NBR through-the-weave hoses

This hose is designed for water discharge, and irrigation, construction etc.

Construction: Circular polyester weave extruded internally and externally with PVC-NBR.

Asoe manufactures differnt hoses, including through-the-weave PU layflat hoses, through-the-weave NBR layflat hoses and jacketed fire hoses etc. Jacketed fire hoses are lined with EPDM, Polyurethane (PU), Nitrile rubber (NBR), PVC, Natural rubber (NR) and CR etc. Asoe fire hoses can meet or exceed the technical standard requirement of NFPA 1961, UL19, FM2111, EN14540, EN14811, DIN and BS6391 etc. Some PU covered layflat hoses meet NSF61 standard, which are appropriate for transfering potable water.

Asoe designs and manufactures hose couplings which works with Asoe hoses. According to different technical requirement in different applications, Asoe team design appropriate couplings. The materials applied in couplings are aluminum, carbon steel, stainless steel 304, SS316, SS316L, PA6 reinforced Nylon, PE, and PP etc. The couplings includes LDHC series of couplings, HPHC FM couplings, Storz couplings, camlocks, instantaneous forestry couplings, bauer couplings, etc.

Asoe offer some equipments which are used to handle hoses, assembly hoses, installing hose projects etc.

Asoe team would like to work with its customers to design new customized solutions which no other layflat hoses manufacturer can supply. Asoe team have enthusiasm in challenging new hose solutions and have expertise in hoses manufacturing, designing, and application, which ensure that Asoe can be a strong back for its customers.

Asoe continously created a lot of new hoses solutions in different industries. These webpages can't details all of them. You are welcome to contact Asoe's sales team.
